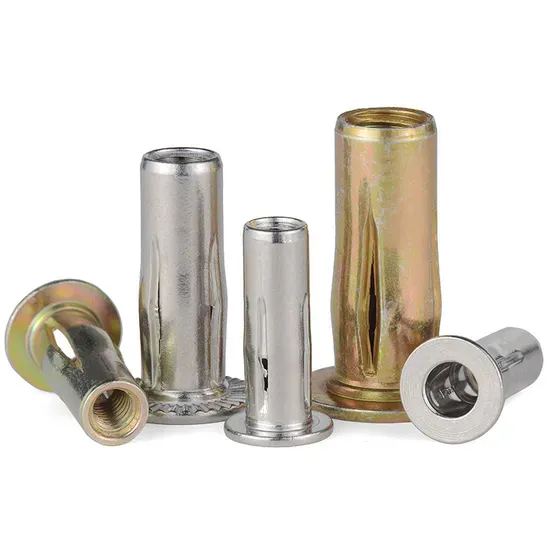

Multi Grip Rivet Nut
The multi grip rivet nut is a versatile and efficient fastener designed to accommodate a wide range of material thicknesses with a single size. Unlike standard rivet nuts that require precise grip range selection, the multi grip rivet nut offers flexibility and reduces the need for multiple inventory sizes. It provides strong internal threads and is ideal for use in thin or varying thickness materials such as sheet metal, plastic, or composites. With excellent vibration resistance and reliable load-bearing performance, it is commonly used in automotive, electronics, and general industrial applications. The multi grip design also simplifies installation and increases assembly efficiency.
If you’re looking for a cost-effective and adaptable fastening solution, the multi grip rivet nut is the perfect choice. Browse our selection today and find the ideal rivet nut for your next project!
Related Products
Get a Free Quote Now!
custom rivet and rivet nut manufacturer
3/8-16 Rivet Nut
1/4 Rivet Nut
M12 Rivet Nut
7/16-20 Rivet Nut
5 16 Rivet Nut
Applications of Multi Grip Rivet Nut
Automotive Industry
Widely used in vehicle body panels, dashboards, and interior components where material thickness may vary. Multi grip rivet nuts help streamline assembly and reduce the number of fastener types needed.
Aerospace and Aviation
Suitable for lightweight, high-performance structures that require strong threaded connections in materials of different thicknesses. Often used in interior panels, structural supports, and equipment enclosures.
Electronics and Electrical Enclosures
Ideal for fastening printed circuit board mounts, control boxes, and casings where walls may be thin or inconsistent. Provides secure, reusable threads in both metal and plastic housings.
HVAC Systems and Ductwork
Used in sheet metal ducting and ventilation systems, especially where material thickness varies. Offers a reliable connection that withstands vibration and thermal expansion.
Furniture and Consumer Appliances
Ensures solid fastening in assemblies made from composite boards, plastic, or laminate. Common in modular furniture, kitchen appliances, and fixtures.
Construction and Metal Fabrication
Provides a strong, adjustable fastening solution in applications like curtain walls, electrical cabinets, or metal framing with non-uniform sheet thicknesses.
Related Articles
FAQs About Multi Grip Rivet Nut
What is a Multi Grip Rivet Nut?
A Multi Grip Rivet Nut is a fastening component designed to provide reliable threaded connections, with a unique structure that allows it to accommodate variations in material thickness. Its appearance is similar to that of a standard rivet nut, typically consisting of a nut body and an extended rivet tube (also known as a rivet shell). Unlike standard rivet nuts, the design of the multi grip rivet nut allows it to grip materials of different thicknesses during installation, providing a secure connection across a wider range of material thicknesses.
The rivet nut is usually cylindrical in shape, with a flat head, countersunk head, or other customized head designs to meet various application needs. The inner surface of the rivet tube is threaded, and during installation, it is expanded and secured into the material using a specialized tool. The extended rivet tube design allows the multi grip rivet nut to accommodate varying material thicknesses without the need to change different sizes, greatly simplifying inventory management and the installation process.
Overall, the structure of the multi grip rivet nut enables it to deliver efficient and stable fastening performance, even when faced with varying materials and thicknesses, making it widely applicable in industries such as automotive, construction, electronics, and machinery.
What Are Multi Grip Rivet Nuts Used for?
- Suitable for Materials of Varying Thickness: Due to its broad grip range, a multi grip rivet nut can provide a secure threaded connection across materials of different thicknesses, especially when material thickness varies significantly.
- Automotive Industry: Used in car body structures, chassis, interior components, etc., providing reliable connections to ensure high strength and durability.
- Construction Industry: Used for fastening and connecting building structures, especially in components made from different materials like metal sheets, plastics, and composites.
- Electronics: Applied in the outer shells, frames, and parts of electronic products, offering stable threaded connections to ensure long-term reliable operation of devices.
- Machinery: Used in the assembly of various machinery and machine parts, especially for components that require quick installation and repeatable disassembly.
- Aerospace: Used in the structures of aircraft and spacecraft, providing lightweight, high-strength fastening solutions for safe and reliable connections.
- Rail Transport: Widely used in railway and rail transport facilities for connecting carriage parts, track components, etc., ensuring long-term stable connections.
- Shipbuilding: Applied in the assembly of ships and offshore platforms, used to connect and fasten different materials, offering corrosion resistance and durability in seawater.
- Furniture and Home Appliances: Used in the assembly of certain furniture and appliances, providing strong connections to ensure the product’s longevity and stability.
What are the benefits of using multi grip rivet nuts?
A. Accommodates a Wider Range of Material Thicknesses
- Compared to traditional rivet nuts with a single grip range, multi grip rivet nuts can cover multiple thickness levels, allowing one size to fit various material thicknesses.
- Ideal for product designs and assemblies where material thickness is uncertain or mixed.
B. Reduces Inventory Variety and Saves Costs
- One multi grip size can replace several standard sizes, significantly reducing the variety of inventory and management costs.
- Especially beneficial for manufacturers dealing with diverse production batches or frequent part changes.
C. Simplifies Procurement and Assembly Processes
- Minimizes the risk of installation failures or rework due to incorrect grip range selection.
- Operators do not need to switch between different rivet nut sizes frequently, improving assembly efficiency and reducing human error.
D. Reliable Installation and Stable Performance
- Maintains consistent clamping force and thread strength, even with varying material thicknesses.
- Adapts to minor tolerances in hole size and panel thickness, ensuring long-term reliability.
E. Compatible with Various Materials
- Suitable for metals, plastics, composites, and other materials, offering broad material compatibility.
- Especially useful in thin sheets, soft materials, or layered structures.
F. Ideal for Curved Surfaces
- Thanks to its flexible grip range and adaptability, multi grip rivet nuts are perfect for installations on curved or irregular surfaces.
- Ensures secure fastening without loosening or rotating on curved panels.
Multi Grip Rivet Nut vs. Rivet Nut vs. Jack Nut, Where is the difference and How do I Choose?
1. Multi Grip Rivet Nut
Key Features:
- Designed to accommodate a wider grip range (material thickness).
- Reduces the need to stock multiple grip-specific sizes.
- Typically used in applications with variable or unknown material thickness.
- Maintains the same strong internal threads as standard rivet nuts.
Best For:
- Automotive, HVAC, and industrial assemblies with inconsistent material thickness.
- Environments with moderate to high vibration.
2. Standard Rivet Nut
Key Features:
- Designed for a specific grip range (material thickness).
- Available in various head styles (flat, countersunk, etc.) and materials.
- Offers stronger clamping force and better thread strength when matched correctly to material thickness.
Best For:
- Applications where material thickness is known and consistent.
- Projects that require high load-bearing capacity.
3. Jack Nut
Key Features:
- A collapsible slotted sleeve that forms a “legs” shape behind the panel when installed.
- Works well in soft, brittle, or thin materials such as plastic, drywall, and fiberglass.
- Provides lower pull-out strength than rivet nuts but is better for low-torque, low-load applications.
Best For:
- Soft or crushable materials.
- Low-stress applications in electronics, furniture, or panel assemblies.
How to Choose:
| Criteria | Multi Grip Rivet Nut | Standard Rivet Nut | Jack Nut |
| Material Thickness | Varying or unknown | Known and consistent | Thin, soft, or brittle materials |
| Load Capacity | Medium to High | High | Low |
| Vibration Resistance | Good | Excellent (if installed properly) | Moderate |
| Material Compatibility | Metals, plastics, composites | Metals, plastics, composites | Soft plastics, drywall, fiberglass |
| Installation Access | Blind (single-side) | Blind (single-side) | Blind (single-side) |
| Cost and Inventory Simplicity | Lower inventory, cost-effective for variable jobs | Requires multiple grip sizes in stock | Lower cost for light-duty use |
Conclusion:
- Choose multi grip rivet nuts when flexibility and inventory reduction are key.
- Use standard rivet nuts when strength and precise material matching are required.
- Opt for jack nuts in soft or fragile materials where traditional rivet nuts might damage the substrate.
