The Comprehensive Guide to Stainless Steel Rivet Nuts
Leading Rivet Nut Manufacturer and Supplier in China
Stainless steel rivet nuts have become an essential fastening solution across many industries due to their strength, durability, and exceptional resistance to corrosion. Whether you’re working in automotive manufacturing, marine engineering, construction, or any field requiring secure and long-lasting threaded connections, understanding the types, materials, and proper applications of stainless steel rivet nuts is crucial. This comprehensive guide will walk you through the fundamentals of stainless steel rivet nuts, their corrosion resistance, differences between common grades like 304 and 316, key selection factors, and practical applications, helping you make informed decisions for your fastening needs.
Table of Contents
What Are Stainless Steel Rivet Nuts?
- Stainless steel rivet nuts are specialized fasteners designed for use in thin-walled materials where traditional tapping is not possible. They provide a strong, threaded connection by being riveted into the material, allowing bolts or screws to be securely fastened.
- Why Choose Stainless Steel: Stainless steel is widely chosen for its high strength, excellent corrosion resistance, and ability to withstand high temperatures. It is especially suitable for applications in harsh environments such as outdoor installations, marine settings, and the chemical industry. Using stainless steel rivet nuts enhances the overall durability and reliability of the fastening system.
Types of Stainless Steel Rivet Nuts
Closed-End (Blind Rivet Nuts) vs. Open-End Rivet Nuts
Blind rivet nuts are sealed at the bottom, preventing dust, moisture, or other contaminants from entering through the tail end. They are ideal for applications requiring sealing, such as electrical enclosures and outdoor equipment. Open-end rivet nuts, on the other hand, have an open tail design and are more commonly used in general applications like machinery and automotive, offering a simpler structure and lower cost.
Specifications of Stainless Steel Rivet Nuts
Common sizes range from M3 to M12 (metric) and #6-32 to 1/2-13 (imperial). Thread types include coarse and fine threads. When selecting rivet nuts, factors such as base material thickness, hole diameter, and load requirements should be considered. Different sizes offer varying tensile and torque strength ratings, so choosing the correct specification is essential for optimal performance.
Specialty Types
These include rivet nuts made from different grades of stainless steel, such as 304 (standard corrosion resistance) and 316 (enhanced resistance to seawater and chemicals). Specialty types also include self-locking rivet nuts, which prevent thread loosening under vibration, and extended-length versions designed for thick materials, providing greater structural stability for high-strength applications.
Benefits of Stainless Steel Rivet Nuts
a. Excellent Corrosion Resistance
The most notable advantage of stainless steel rivet nuts is their outstanding resistance to corrosion, especially in grades like 304 and 316. Grade 304 is suitable for most indoor and mildly corrosive environments, such as humid rooms or exterior architectural panels. Grade 316, enhanced with molybdenum, offers superior resistance to chloride ions, saltwater, strong acids, and aggressive chemicals. This corrosion resistance is due to the formation of a passive chromium oxide film on the surface, which protects the metal even under harsh conditions such as high humidity, salt spray, or chemical exposure.
b. High Strength and Long-Term Durability
Stainless steel rivet nuts provide superior mechanical strength, especially in terms of pull-out and spin-out resistance, compared to aluminum or carbon steel counterparts. They maintain structural rigidity under heavy loads and resist deformation or fatigue. This makes them ideal for high-stress applications like automotive chassis, heavy machinery enclosures, and industrial equipment. Additionally, they can withstand frequent fastening and unfastening without thread damage, making them highly durable for long-term or repeated use.
c. Integrated Thread for Easy Assembly and Maintenance
Once installed, stainless steel rivet nuts provide a strong, reliable internal thread, perfect for use on thin sheets, hollow sections, or tubing where backside access is not possible. They allow quick and secure fastening with standard bolts or screws. This threaded feature enables easy disassembly and reassembly during equipment maintenance, repair, or upgrades—without damaging the host material.
d. Versatile with a Wide Range of Base Materials and Environments
Stainless steel rivet nuts are compatible with a wide variety of base materials, including metal panels, composite boards, plastics, and even wood. By choosing appropriate body styles—such as round, knurled, or hex—you can achieve greater resistance to rotation and slippage, even in softer or irregular materials. Likewise, different head styles (flat, countersunk, low-profile) offer flexibility to meet aesthetic or functional design needs.
e. Attractive Finish with Maintenance-Free Longevity
The natural finish of stainless steel is smooth, shiny, and resistant to rust without any additional coatings. This clean appearance makes it ideal for use in industries where both function and aesthetics matter, such as high-end appliances, kitchen equipment, medical devices, and architectural applications. Its resistance to dirt and discoloration also means minimal maintenance over time, saving on costs and effort.
Why Do Rivet Nuts Have Such Excellent Corrosion Resistance?
1. Source of Corrosion Resistance: Formation and Mechanism of the Passivation Film
The corrosion resistance of stainless steel rivet nuts originates from the formation of a passivation film on their surface, primarily composed of chromium oxide (Cr₂O₃).
- Formation: When the chromium content exceeds 10.5%, chromium reacts with oxygen in the air to form a thin, stable, and dense layer of chromium oxide on the surface.
- Protective Role: This film is extremely thin (2–5 nanometers), yet it effectively blocks moisture, oxygen, salts, and chemicals from penetrating and corroding the underlying metal.
- Self-Healing Ability: Even if scratched or damaged, the film can regenerate automatically in the presence of oxygen, restoring its protective function—an ability unmatched by carbon or galvanized steel.
2. Corrosion Resistance Differences Between Stainless Steel Grades
The most commonly used stainless steel grades for rivet nuts are 304 and 316, which differ significantly in chemical composition and corrosion performance:
304 Stainless Steel Rivet Nuts
- Composition: Contains approximately 18% chromium and 8% nickel (commonly referred to as 18-8 stainless).
- Corrosion Characteristics:
- Excellent performance in most indoor and lightly corrosive industrial environments.
- Suitable for use in food equipment, electronics enclosures, and general mechanical assemblies.
- However, vulnerable to chloride-induced corrosion, such as pitting and crevice corrosion, in salt-rich or marine environments.
316 Stainless Steel Rivet Nuts
- Composition: In addition to chromium and nickel, it contains 2–3% molybdenum (Mo).
- Enhanced Corrosion Resistance:
- Molybdenum strengthens the passivation film, improving resistance to chlorides and acids.
- Ideal for marine, chemical, and coastal applications, as well as medical and pharmaceutical equipment.
- Outperforms 304 stainless in salt spray, chemical exposure, and immersion tests.
3. Performance in Various Corrosive Environments
Stainless steel rivet nuts are highly adaptable to extreme environments. Their performance in typical corrosive conditions includes:
- High-Humidity and Moist Environments
The passivation film prevents water ingress, maintaining stability even in continuous condensation or immersion. - Salt Spray and Marine Environments
316 stainless steel is highly recommended in chloride-rich environments like seawater, offering long-term durability in coastal structures, docks, and marine equipment. - Acidic Conditions
Resistant to nitric acid, acetic acid, and various organic acids, making them suitable for chemical processing and cleaning systems. - Alkaline Environments
Offers moderate resistance to bases such as sodium hydroxide. 316 performs better in industries like pulp & paper and textiles. - UV and Temperature Extremes
Stainless surfaces do not degrade like coated materials, maintaining both mechanical and chemical properties under harsh UV exposure and temperature fluctuations.
4. Corrosion Resistance Comparison with Other Materials
| Material | Corrosion Resistance | Typical Issues | Suitable Applications |
| Carbon Steel (bare) | Very Poor | Rusts rapidly, bubbles when oxidized | Dry indoor use, low-cost assemblies |
| Zinc-Plated Steel | Moderate | Coating damage leads to fast rust | Light indoor corrosion environments |
| Aluminum Alloy | Moderate | Vulnerable to acids/alkalis, lower strength | Lightweight or mild corrosion areas |
| 304 Stainless | Good | Sensitive to chlorides | General industry, food processing |
| 316 Stainless | Excellent | Resistant to acids, salts, and chemicals | Marine, chemical, medical, coastal areas |

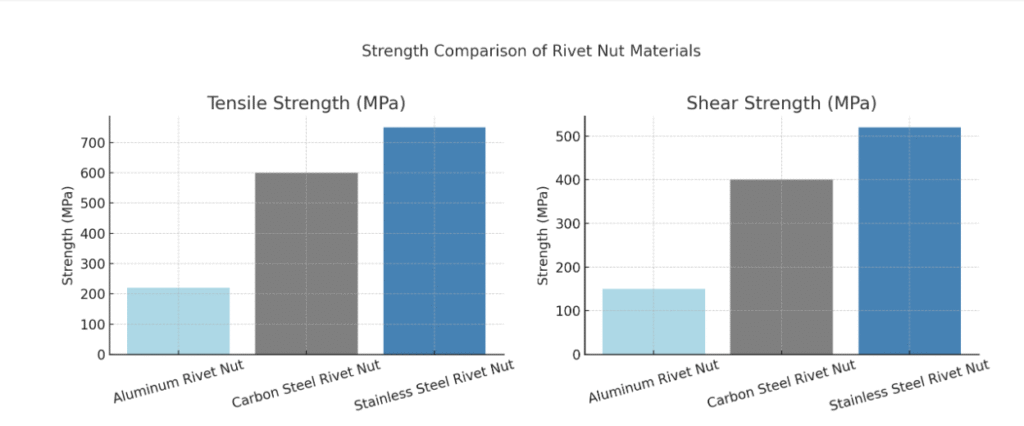

How Strong and Durable Are Stainless Steel Rivet Nuts?
Stainless steel rivet nuts are widely recognized for their outstanding mechanical properties and long service life. Compared to aluminum alloy or carbon steel rivet nuts, stainless steel versions exhibit superior tensile strength, shear resistance, and fatigue durability—making them ideal for high-load, high-vibration, and harsh-environment fastening applications.
1. Higher Tensile Strength
Tensile strength measures the rivet nut’s ability to resist axial pulling forces. Based on typical material performance:
Aluminum alloy rivet nuts: approx. 220 MPa
Carbon steel rivet nuts: approx. 600 MPa
Stainless steel rivet nuts (e.g., 304 or 316): approx. 750 MPa
This superior tensile strength ensures a more secure and reliable thread connection in structural applications.
2. Superior Shear Strength
Shear strength is critical when the rivet nut is subject to lateral forces:
Aluminum: approx. 150 MPa
Carbon steel: approx. 400 MPa
Stainless steel: up to 520 MPa
3. Exceptional Fatigue Resistance
Stainless steel rivet nuts offer better resistance to fatigue under cyclic loading conditions, such as vibrations or repetitive stress. They maintain thread integrity and fastening security over time, far exceeding the lifespan of aluminum or plated steel alternatives.
4. Ideal for High-Stress Structural Components
These rivet nuts are suitable for heavy-duty and safety-critical assemblies, including:
Aircraft skins and cabin frame joints
Commercial vehicle chassis and bodywork
Industrial machinery and pressure vessel fastening
Applications of Stainless Steel Rivet Nuts
Automotive Industry
Used for fastening components in car bodies, chassis, and interiors, especially in areas exposed to moisture, salt, or chemicals. Common in truck bodies, exhaust systems, and engine compartments.
Marine and Offshore Equipment
Ideal for assembling and securing parts on boats, ships, and offshore platforms due to their high corrosion resistance in saltwater environments.
Construction and Architecture
Used in curtain wall systems, metal frameworks, facades, handrails, and exterior cladding where long-term weather resistance is critical.
Electrical and Electronics Enclosures
Provide strong, corrosion-resistant threads in stainless steel control panels, switchgear housings, and junction boxes used in outdoor or industrial environments.
Food and Beverage Equipment
Suitable for hygienic and corrosion-resistant assembly in kitchen equipment, food processing machinery, and beverage dispensers.
Medical and Pharmaceutical Devices
Applied in equipment requiring sanitary, non-corrosive fastening solutions, such as stainless steel carts, frames, and support structures.
Factors to Consider When Choosing Stainless Steel Rivet Nuts
a. Material Grade (e.g., 304 vs. 316 Stainless Steel)
Stainless steel rivet nuts are typically made from 304 or 316 stainless steel, and the material grade directly affects corrosion resistance and application suitability:
304 stainless steel contains approximately 18% chromium and 8% nickel, offering good corrosion resistance for indoor, low-humidity, or mildly corrosive environments such as general industrial equipment, home appliances, or architectural finishes.
316 stainless steel includes 2%–3% molybdenum in addition to chromium and nickel, significantly enhancing resistance to chloride-induced corrosion (e.g., seawater, salt spray). It is ideal for marine equipment, chemical plants, coastal structures, and other highly corrosive environments.
Choose the material grade based on the severity of the working environment.
b. Thread Size and Type
The internal thread size of the rivet nut must match the mating bolt or screw to ensure proper fastening:
Common metric thread sizes include M3, M4, M5, M6, M8, M10, etc.
Imperial thread sizes like 1/4-20 or 5/16-18 are commonly used in export products or North American systems.
Mismatched thread sizes can lead to poor fit, stripping, or fastener failure.
c. Grip Range / Material Thickness
Each rivet nut is designed for a specific grip range (the thickness of material it can clamp):
If the material is too thin, the rivet nut cannot expand fully and may come loose.
If the material is too thick, the nut may not deform correctly, resulting in an insecure connection.
It is essential to accurately measure the total thickness of the materials being fastened and select a rivet nut with a matching grip range.
d. Head Style
The head style of the rivet nut affects both the aesthetic and functional finish:
Flat head Rivet Nuts: Sits flush against the surface, offering a clean appearance.
Countersunk head Rivet Nuts: Designed to sit below the material surface, suitable for countersunk holes.
Reduced head Rivet Nuts: Thinner flange height, useful in space-constrained applications or where protrusion must be minimized.
e. Body Style
The body design influences the nut’s resistance to spinning, especially in soft materials:
Round body Rivet Nuts: Easy to install but may require a pre-knurled hole to prevent spinning.
Knurled body Rivet Nuts: Features ridges for enhanced grip in soft materials like aluminum or plastic.
Hex body Rivet Nuts: Offers the best anti-rotation performance when used with hexagonal holes, ideal for high-strength fastening needs.
Conclusion
Stainless steel rivet nuts are a reliable, high-strength fastening solution with excellent corrosion resistance, widely used across industries such as automotive, marine, food processing, and renewable energy. Understanding their working principles and material grades—such as the performance differences between 304 and 316 stainless steel—is crucial for selecting the right type based on specific environmental and load requirements. By taking into account factors like grip range, head style, and installation method, you can ensure a durable and secure threaded connection that performs well even under the most demanding conditions. Whether you’re aiming for strength, longevity, or environmental adaptability, stainless steel rivet nuts are an ideal choice for professional fastening applications.
FAQs
1. What are the main advantages of using stainless steel rivet nuts?
Stainless steel rivet nuts offer excellent corrosion resistance, high mechanical strength, and long-term durability. Compared to carbon steel or aluminum options, stainless steel is much more resistant to rust, oxidation, and degradation caused by moisture, salt spray, acids, or alkaline substances. This makes them ideal for outdoor equipment, marine structures, automotive chassis, electrical enclosures, and heavy industrial applications. Additionally, stainless steel performs well under extreme temperature changes, maintaining structural integrity even in harsh conditions.
2. When should I choose 316 stainless steel over 304?
Choose 316 stainless steel when your application is exposed to chlorides, saltwater, coastal air, bleach, or aggressive chemicals. Unlike 304, 316 stainless steel contains molybdenum (Mo), which significantly improves its resistance to pitting and crevice corrosion, especially in chloride-rich environments. This makes it ideal for marine equipment, food processing, chemical tanks, and pharmaceutical-grade installations where superior corrosion performance is critical.
3. Can stainless steel rivet nuts be used in soft materials like plastic or wood?
Yes, but selecting the right body design is essential for optimal performance. In soft materials such as plastic, wood, or composites, standard round-body rivet nuts may spin or loosen over time. To improve grip and anti-rotation performance, consider:
Knurled body: Features surface grooves that increase friction with the hole wall.
Hex body: Designed for installation in hexagonal holes, providing strong mechanical lock.
Large flange: Offers a wider bearing surface to resist pull-through or compression.
These designs help ensure a more secure and durable connection in low-density materials.
4. What tools are required to install stainless steel rivet nuts?
Due to the hardness of stainless steel, installation requires tools capable of delivering higher torque or pulling force. Options include:
Manual rivet nut tools: Suitable for low-volume or maintenance work; portable but labor-intensive.
Pneumatic rivet nut guns: Ideal for medium-volume production, offering faster and easier operation.
Hydraulic rivet nut systems: Best for high-volume or automated production lines, delivering consistent power.
Be sure to use compatible mandrels and nosepieces for each rivet nut type. Follow manufacturer specifications for stroke length and installation force to prevent thread damage or improper seating.
5. Are stainless steel rivet nuts reusable?
The rivet nut body is not meant to be removed and reused, but the internal threads are reusable. Once installed, you can screw and unscrew fasteners multiple times without compromising the joint integrity. This makes stainless steel rivet nuts ideal for applications requiring frequent servicing, such as access panels, control boxes, or removable covers. However, care must be taken to avoid over-tightening or cross-threading to preserve long-term performance.
