When it comes to fastening solutions in lightweight materials, one common question is: Can you use stainless steel rivnuts in aluminum? This combination is often considered for its strength and durability, especially in industries like aerospace, automotive, and marine. However, mixing dissimilar metals can raise concerns about galvanic corrosion, thermal expansion differences, and long-term structural reliability. In this article, we’ll explore the pros, cons, and best practices for using stainless steel rivnuts in aluminum, helping you make informed decisions for high-performance and corrosion-resistant assemblies.
Table of Contents
What Are the Key Properties of Stainless Steel Rivnuts?
Stainless steel rivnuts are widely used in demanding fastening applications due to their excellent mechanical performance and environmental resistance. Their key properties include:
High-Quality Stainless Steel Material
Stainless steel rivnuts are commonly made from 304 or 316 stainless steel:
- Type 304 offers good corrosion resistance and mechanical strength, making it suitable for most industrial environments.
- Type 316, with added molybdenum, provides enhanced resistance in marine or chemically aggressive environments—ideal for applications with high humidity, salt, or chemical exposure.
Compared to aluminum or carbon steel inserts, 304/316 stainless steel exhibits significantly higher tensile strength (typically 550–700 MPa or more), allowing it to withstand greater axial loads and shear forces, thereby improving the overall structural integrity and safety.
Below is a comparison table highlighting the tensile, shear, and torque performance of stainless steel rivnuts:
| Property | Stainless Steel Rivnuts (304/316) | Aluminum Rivnuts (5052) | Carbon Steel Rivnuts (Low-Carbon Steel) |
| Tensile Strength | 550–700 MPa | 200–280 MPa | 380–480 MPa |
| Shear Strength | 400–550 MPa | 120–180 MPa | 300–400 MPa |
| Max Installation Torque (M6) | 10–14 Nm (depending on surface finish) | 4–6 Nm | 7–10 Nm |
| Pull-Out Load (M6) | 8,000–10,000 N | 3,000–4,500 N | 6,000–7,500 N |
Notes:
- Tensile Strength: Indicates the axial force the rivnut can withstand before breaking. The higher, the better.
- Shear Strength: Measures the ability to resist lateral force under load.
- Installation Torque: Reflects the torque the threads can handle during installation—higher torque means stronger threads and less risk of stripping.
- Pull-Out Load: The force required to extract the rivnut from the base material, indicating fastening security.
Reliable in Harsh Environments
Thanks to their superior corrosion resistance, aging resistance, and heat resistance, stainless steel rivnuts are ideal for long-term use in outdoor, marine, chemical, shipbuilding, and food equipment environments.
Compatible with Multiple Installation Tools
Although stainless steel rivnuts are harder than other materials, they are still compatible with a wide range of installation tools, including:
- Manual rivnut tools (best for repair or low-volume use)
- Pneumatic rivnut guns (suitable for small to medium production)
- Electric or hydraulic rivet tools (ideal for automated or high-volume assembly)
What Are the Characteristics of Aluminum?
Aluminum is a widely used metal in industrial manufacturing and structural fastening. Thanks to its excellent physical and chemical properties, it plays an important role in industries such as automotive, aerospace, electronics, and construction. Its main characteristics include:
1. Low Density and Lightweight
Aluminum has a density of approximately 2.7 g/cm³, which is about one-third that of steel. This makes it highly advantageous in applications requiring weight reduction, especially in aerospace vehicles, automobiles, drones, and portable devices.
2. Excellent Thermal and Electrical Conductivity
Aluminum is a highly conductive metal in terms of both heat and electricity. Although its conductivity is slightly lower than copper, aluminum offers better weight efficiency, cost-effectiveness, and workability, making it widely used in structural parts that require thermal or electrical transfer, such as heatsinks, electronic enclosures, and electrical connectors.
a. Thermal Conductivity:
| Material | Thermal Conductivity (W/m·K) | Notes |
| Copper (Cu) | ~390 | Excellent, standard reference |
| Aluminum (Al) | ~235 | High, ~60% of copper |
| Stainless Steel (304) | ~16 | Low |
| Titanium (Ti) | ~22 | Much lower than Al/Cu |
Aluminum has significantly higher thermal conductivity than stainless steel and titanium, making it an ideal heat dissipation material. It is commonly used in LED heatsinks, laptop casings, heat spreaders, and heat exchangers.
b. Electrical Conductivity:
| Material | Electrical Conductivity (% IACS) | Notes |
| Copper (Cu) | 100 | International standard (IACS baseline) |
| Aluminum (Al) | 61–65 | Lightweight and efficient for power systems |
| Stainless Steel (304) | < 3 | Very low, unsuitable for electrical use |
Although aluminum has lower electrical conductivity than copper, its lower density (1/3 of copper) gives it a better strength-to-weight ratio in electrical applications. It’s widely used in high-voltage transmission lines, busbars, and lightweight electrical components.
Thus, aluminum offers good thermal and electrical conductivity while remaining lightweight and cost-efficient. It is a practical alternative to copper, especially in electronics, automotive, thermal management, and aerospace industries.
3. Good Machinability
Aluminum and its alloys have excellent machinability and formability. They can be processed using die casting, stamping, CNC machining, and more. This makes aluminum ideal for mass production and manufacturing of complex structural components.
4. Relatively Low Strength and Stiffness
In terms of tensile strength:
- Common alloys like 6061-T6 have tensile strength around 275–310 MPa, which is moderate.
- 7075-T6, a high-strength aluminum alloy, can reach 500–570 MPa, comparable to some carbon steels.
- However, most commonly used aluminum alloys such as 5052 or 3003 have lower tensile strengths than steel.
- For reference, Q235 carbon steel typically has a tensile strength of 370–500 MPa.
- Pure aluminum (e.g., 1100 series) has tensile strength as low as 90–110 MPa, suitable only for low-load applications.
In addition to tensile strength, aluminum has lower rigidity:
- Aluminum’s elastic modulus is typically 68–75 GPa, whereas steel ranges from 200–210 GPa—nearly three times higher.
- This means aluminum components deform more under the same load, potentially affecting structural stability.
5. Widely Used in Thin-Walled Structures and Casings
Due to its light weight and ease of processing, aluminum is especially suitable for applications requiring both structural integrity and aesthetic appearance, such as laptop casings, car panels, aircraft cabins, and equipment housings.
6. Susceptible to Galvanic Corrosion
Aluminum is a highly electrochemically active metal. When in contact with more “noble” metals like stainless steel, copper, or brass, and exposed to moisture, salt, or conductive liquids, it is prone to galvanic corrosion.
This corrosion occurs because aluminum acts as the anode and corrodes preferentially, while the more noble metal acts as the cathode. This phenomenon can significantly reduce the life span and structural integrity of aluminum parts if not properly managed.
Can You Use Stainless Steel Rivnuts in Aluminum?
1. Advantages Explained:
a. High-Strength Connection
Stainless steel offers significantly higher tensile and shear strength than aluminum or carbon steel rivnuts. When used in aluminum panel assemblies, it can greatly enhance the load-bearing capacity of the entire structure. It is particularly effective in applications that involve high loads, impacts, or frequent use. For sizes M6 and above, stainless steel rivnuts help prevent issues like thread stripping or loosening.
b. Excellent Corrosion Resistance
Both 304 and 316 stainless steel grades are known for their outstanding corrosion resistance. Even in humid, salty, or mildly acidic environments, stainless steel rivnuts maintain structural stability. This makes them ideal for outdoor structures, seaside equipment, transportation infrastructure, and mechanical enclosures where aluminum components are exposed to harsh environmental conditions.
c. Wear-Resistant and Suitable for Repeated Assembly
Aluminum is a relatively soft material. When threads are tapped directly into it, repeated assembly and disassembly can easily damage the threads. Stainless steel rivnuts provide a durable, wear-resistant internal thread, capable of withstanding multiple insertions and removals of bolts. This is especially beneficial for connection points involving frequent maintenance or replaceable components.
2. Detailed Disadvantages

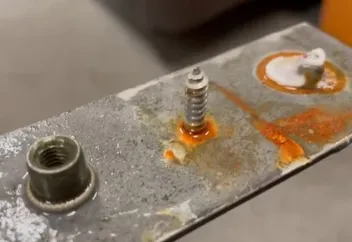

a. Risk of Galvanic Corrosion (Dissimilar Metal Corrosion)
Mechanism Explained:
Galvanic corrosion typically occurs when three conditions are met:
Two dissimilar metals (e.g., stainless steel and aluminum) are in direct contact.
There is a conductive medium present (such as water, moisture, salt spray, or other electrolytes).
There is a potential difference between the metals.
In such an environment, stainless steel and aluminum form a miniature “electrochemical cell”:
Aluminum acts as the anode, being more active and prone to losing electrons, thus corroding faster.
Stainless steel acts as the cathode and remains largely unaffected.
The final result: aluminum corrodes, while stainless steel stays intact.
Galvanic corrosion typically occurs when three conditions are met:
Two dissimilar metals (e.g., stainless steel and aluminum) are in direct contact.
There is a conductive medium present (such as water, moisture, salt spray, or other electrolytes).
There is a potential difference between the metals.
In such an environment, stainless steel and aluminum form a miniature “electrochemical cell”:
Aluminum acts as the anode, being more active and prone to losing electrons, thus corroding faster.
Stainless steel acts as the cathode and remains largely unaffected.
The final result: aluminum corrodes, while stainless steel stays intact.
Corrosion Manifestations:
Formation of white, powdery oxidation on the aluminum surface
Bubbling, discoloration, or peeling around the rivnut
Long-term exposure may lead to cracking, pitting, or loosening of the aluminum structure
Corrosion typically occurs near the edges of the rivnut, hole entry, or contact zones
High-Risk Environments:
Coastal or humid environments (especially with salt-laden air)
Areas frequently exposed to rain, condensation, or washing
Sealed but humid or poorly ventilated enclosures
Outdoor installations without sealing protection
Recommended Mitigation Measures:
To use stainless steel rivnuts safely with aluminum substrates, consider the following solutions:
Surface Isolation Treatments
Use insulating washers, nylon sleeves, or plastic isolators between stainless steel and aluminum.
Apply epoxy coatings, anti-corrosion sealants, or dielectric paints around the rivnut or hole.
Choose stainless steel rivnuts with ceramic, zinc-nickel, or other anti-corrosion coatings.
Apply Anti-Corrosion Lubricants or Compounds
Before installation, coat the rivnut with anti-corrosion grease (e.g., Denso, Loctite products) to form a moisture barrier and prevent electrolyte exposure.
Optimize Structural Design
Avoid water retention or condensation traps.
Add drainage or ventilation holes to speed up drying.
Minimize contact area between dissimilar metals.
Choose Better-Matched Material Combinations
In harsh environments, consider aluminum rivnuts or zinc-coated carbon steel alternatives.
Alternatively, use bimetal rivnuts, which combine the strength of stainless steel with aluminum compatibility.
b. Thermal Expansion Mismatch May Cause Stress Concentration
While stainless steel rivnuts and aluminum can form a high-strength mechanical bond, they differ significantly in thermal properties. The Coefficient of Thermal Expansion (CTE) is a key parameter:
Aluminum’s CTE: ~22–24 × 10⁻⁶ /K
Stainless Steel (e.g., 304): ~16–17 × 10⁻⁶ /K
This means aluminum expands and contracts 30%–50% faster than stainless steel for every 1°C change.
How This Affects Assembly:
When stainless steel rivnuts are installed in aluminum and exposed to rapid temperature fluctuations (e.g., day–night cycles, on–off machine operation, rapid heating or cooling), the materials expand and contract at different rates, causing issues such as:
Local Stress Concentration
Aluminum may expand more than the rivnut, causing stress at the hole edges due to differential movement.
Micro-Deformation or Cracking
Repeated stress may fatigue the aluminum near the rivnut, leading to cracks or deformations.
Rivnut Loosening
If aluminum expands more and contracts back, it may reduce the preload force on the rivnut, leading to loosening or reduced thread engagement.
High-Risk Scenarios:
Outdoor equipment with large temperature swings
Structures in high-altitude/desert/cold-climate zones
Equipment frequently started/stopped
Heat-sensitive areas like engine bays, electrical enclosures, and heat sinks
Mitigation Suggestions:
Leave Room for Thermal Stress Relief
Use floating rivnuts or include elastic spacers to absorb stress.
Use Materials with Closer Thermal Expansion Rates
Replace stainless steel rivnuts with aluminum or zinc-plated steel ones where possible.
Avoid High-Rigidity Zones
Don’t use dissimilar fasteners near corners, welds, or other highly constrained areas.
Enhance Structural Safety Margins
Increase rivnut count, use larger flange rivnuts, or reinforce the aluminum panel.
c. Higher Material Cost
Stainless steel itself is more expensive, and it is also harder to process than aluminum or carbon steel. As a result, stainless steel rivnuts typically cost 1.5 to 3 times more than aluminum ones.
Typical M6 Unit Price Comparison:
Aluminum rivnut: ¥0.20–0.40
Zinc-coated carbon steel rivnut: ¥0.30–0.60
Stainless steel rivnut: ¥0.60–1.20 or higher
This price difference makes stainless steel less cost-effective in budget-sensitive or low-load applications.
Conclusion:
Yes, stainless steel rivnuts can be used in aluminum. However, their application must consider factors like corrosion risks and thermal compatibility. With proper design, insulation, and protective measures, they can provide strong, reliable, and long-lasting fastening performance.
That said, direct use without any protection is not recommended—especially in harsh environments.
What Are the Alternatives to Stainless Steel Rivnuts in Aluminum?
Made of the same material as the aluminum substrate, eliminating potential difference and avoiding galvanic corrosion—ideal for humid or salt-spray environments.
Lightweight, suitable for weight-sensitive applications such as aerospace and automotive lightweight structures.
Lower cost and excellent machinability, making them ideal for high-volume general assemblies.
Drawback: Lower strength compared to stainless steel, not recommended for high-stress or load-bearing areas.
2. Zinc-Plated Carbon Steel Rivnuts with Corrosion Isolation
Carbon steel offers a strong, cost-effective fastening solution with higher mechanical strength.
The zinc coating improves corrosion resistance; when used together with protective isolation layers (such as epoxy coatings, anti-corrosion grease, or insulating washers), it can significantly reduce galvanic corrosion risk.
Widely used in moderate-corrosion environments such as mechanical structures, home appliances, and general equipment assembly.
Note: If protective measures are inadequate, long-term use may still result in rust or corrosion migration.
Copper and its alloys (like brass) offer excellent corrosion resistance and conductivity, making them suitable for electrical devices, precision instruments, and marine applications.
The potential difference between copper and aluminum is smaller than that of stainless steel, meaning a lower galvanic corrosion risk.
Brass rivnuts have a naturally glossy appearance, ideal for aesthetic applications or functional housing components.
Limitations: Higher cost and slightly lower mechanical strength—not recommended for high-load applications.
Recommendation Summary:
When selecting rivnut materials for use in aluminum structures, consider the following factors:
Exposure to moisture, salt spray, or corrosive environments
Risk of galvanic corrosion due to dissimilar metals
Required tensile or shear strength at the connection point
Budget limitations and whether the application involves mass production
Conclusion
Stainless steel rivnuts can indeed be used in aluminum, and their excellent strength and corrosion resistance make them highly valuable for structural fastening applications. However, in practical use, it is essential to fully consider the risk of galvanic corrosion and structural stress caused by differences in thermal expansion coefficients.
As long as appropriate anti-corrosion isolation measures are taken during the design phase and the structural compatibility is optimized, stainless steel rivnuts and aluminum substrates can still achieve a stable, reliable, and long-lasting fastening result.
If the application environment is more demanding—such as involving humidity, salt spray, frequent thermal cycling, or strong vibrations—it is recommended to balance safety, cost-efficiency, and durability, and choose the most suitable rivnut material and protective strategy. This ensures consistent performance and fastening reliability throughout the entire product lifecycle.
